Concept:A
transverse (cross) section is a cut across the fruit, at right angles to its long axis (stalk to tip). A
longitudinal section is a cut along the long axis, from the stalk end to the tip.

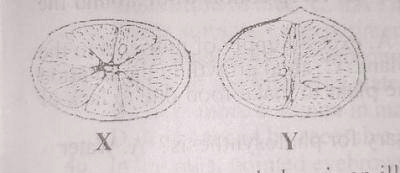

Explanation:X: the segments (carpels) radiate like wheel spokes from a central axis in the middle, and no stalk is seen. This is what an orange shows when cut across, so X is a
transverse section.
Y: the central axis runs as a band from the stalk end (the small point at the top) down through the fruit, and the segments are seen lengthwise. This is a cut along the axis, so Y is a
longitudinal section.
Key point: 'Cross section' and 'transverse section' mean the same cut, so options C and D cannot be right. The stored key gave (A) longitudinal and transverse, which swaps the two sections.
Answer:Option B (transverse and longitudinal)
