Concept:A logic gate is an electronic circuit that produces an output based on one or more input signals.

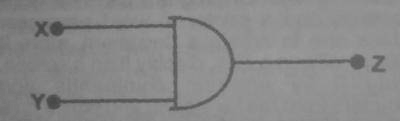

Explanation:The figure shows the standard symbol of a digital logic gate.
It has two inputs on its left side and one output on its right side.
This symbol is specifically used for an AND gate.
An AND gate gives a high output (
1) only when all its inputs are high (
1).
If any input is low (
0), the output becomes low (
0).
This behavior matches the AND operation, not NOT, NAND, or OR.
Thus, the gate represented in Figure 1 is an AND gate.
Answer:C. an AND gate.
