Concept:A logic gate is an electronic circuit that produces a specific output for every combination of inputs.

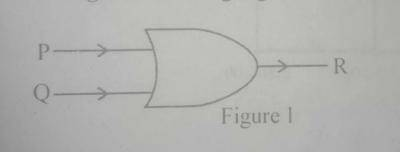

Explanation:The gate shown in Figure 1 is identified by its characteristic shape.
For an OR gate, the output is HIGH (
1) when at least one input is HIGH (
1).
The output is LOW (
0) only when all inputs are LOW (
0).
This behaviour matches the OR operation.
Therefore, the symbol in Figure 1 does not represent AND, NAND, or NOR, but the OR gate.
Answer:D. OR gate
