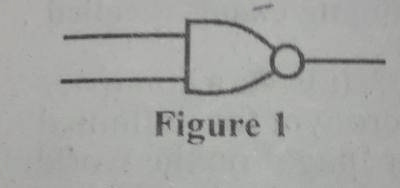

Concept:Identify the logic gate from its standard circuit symbol in the figure.Explanation:The symbol in Figure 1 is an AND gate with a small bubble at its output.This bubble indicates that the output is inverted.So the gate produces the complement of the AND operation.Such a gate is called a NAND gate.Its output is LOW only when both inputs are HIGH; otherwise the output is HIGH.Answer:B. NAND gate
