Concept:An ohmic conductor follows Ohm's law, so the current and voltage are directly proportional.
Explanation:For an ohmic conductor,
V=IR with constant resistance
R.
Thus
I=RV: the current increases in proportion to the voltage.
On a current-voltage graph, this produces a straight line that passes through the origin.
Any curved graph, or a line that does not pass through
(0,0), indicates non-ohmic behaviour.

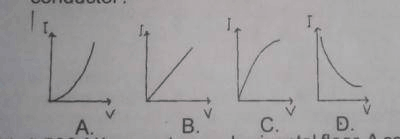

Graph B is the only straight line through the origin. A and C are curved (resistance changes with current, e.g. a filament lamp or diode) and D shows current falling as voltage rises.
Answer:Option B (B)
