Concept:The rate of a reaction is proportional to the concentration of the reactant in solution (collision theory). With the same length (same surface area) of magnesium, only the acid concentration changes.
Explanation:Mg(s)+2HCl(aq)→MgCl2(aq)+H2(g)Doubling the acid concentration doubles the number of acid particles hitting the magnesium surface per second, so the rate of hydrogen evolution doubles.
So rate

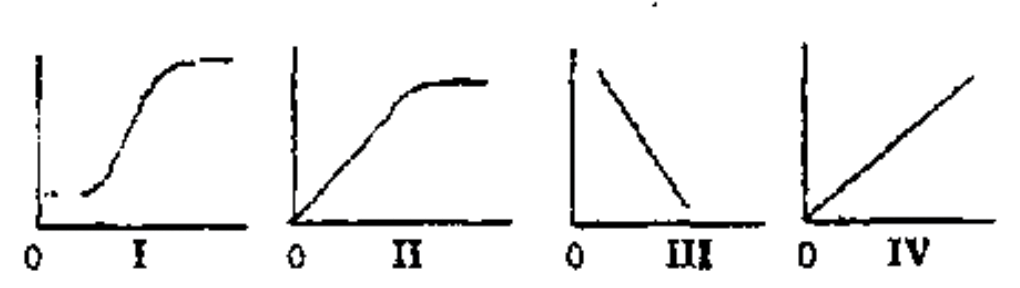

∝ [acid]: a straight line through the origin. That is graph IV.
Graph I (S-shaped) is a titration curve, graph II levels off, and graph III falls, so none of them shows rate
∝ concentration.
Key point: The stored key gave graph I, but an S-shaped curve does not show a rate that increases in proportion to concentration; the straight line through the origin (IV) does.
Answer:Option D (IV)
