Question : 10
Total: 50

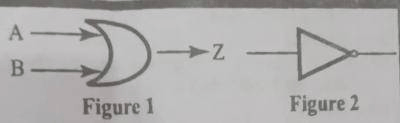

Use the devices in Figures 1 and 2 to answer the questions given that the input variables X and Y have values of 0011 and 0101 respectively as shown in Table 1.
| X | Y |
|
0 0 1 1 |
0 1 0 1 |

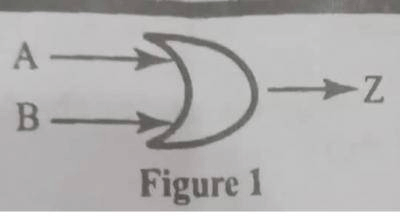

Compute the value of the output Z in Figure 1 using the values of X and Y given.
