Question : 11
Total: 50

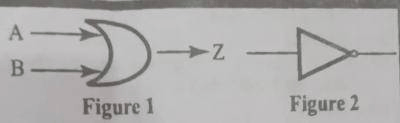

Use the devices in Figures 1 and 2 to answer the questions given that the input variables X and Y have values of 0011 and 0101 respectively as shown in Table 1.
| X | Y |
|
0 0 1 1 |
0 1 0 1 |
If the input variable X in Figure 1 is passed through the device in Figure 2 before going into the logic gate in Figure 1, what will be the value of the output Z?
