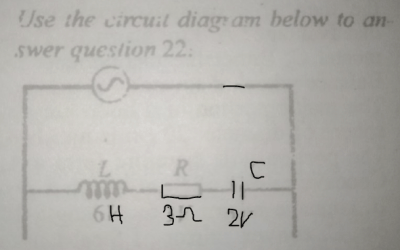

Concept:In a series RLC circuit with sinusoidal alternating current, the applied peak e.m.f. is the phasor sum of the peak voltages across the resistor, inductor, and capacitor.Explanation:From the diagram: VL=6 V, VR=3 V, VC=2 V (peak values).In a series circuit the same current flows through all three, but VL leads the current by 90∘, VC lags it by 90∘ and VR is in phase with it. So VL and VC act in opposite directions, and the resistor voltage VR=3 V and the reactive voltage (VL−VC) are 90∘ out of phase.So, the total applied peak e.m.f. is given by:V=VR2+(VL−VC)2Substitute the given values:V=32+(6−2)2V=9+16V=25V=5 VKey point: The voltages cannot simply be added (6+3+2=11 V) because they are not in phase.Answer:Option C (5 V)
